2  Tutorial 2: Deep neural network with dataset functions and callbacks (binary classification)

Aims: To predict heart disease using a deep neural network with custom dataset functions and training callbacks.

Data: heartdisease data from MLDataR package.

Code description: This code demonstrates the use of torch with custom dataset functions, dataset subsets, and training callbacks including early stopping and best model checkpointing.

Packages

library(torch)
library(luz)
library(tidyverse)
library(tidymodels)
library(MLDataR)

Data

heart_df <-
  heartdisease %>%
  mutate(across(c(Sex, RestingECG, Angina), as.factor))

Explore data.

skimr::skim(heart_df)
Data summary
Name heart_df
Number of rows 918
Number of columns 10
_______________________
Column type frequency:
factor 3
numeric 7
________________________
Group variables None

Variable type: factor

skim_variable n_missing complete_rate ordered n_unique top_counts
Sex 0 1 FALSE 2 M: 725, F: 193
RestingECG 0 1 FALSE 3 Nor: 552, LVH: 188, ST: 178
Angina 0 1 FALSE 2 N: 547, Y: 371

Variable type: numeric

skim_variable n_missing complete_rate mean sd p0 p25 p50 p75 p100 hist
Age 0 1 53.51 9.43 28.0 47.00 54.0 60.0 77.0 ▁▅▇▆▁
RestingBP 0 1 132.40 18.51 0.0 120.00 130.0 140.0 200.0 ▁▁▃▇▁
Cholesterol 0 1 198.80 109.38 0.0 173.25 223.0 267.0 603.0 ▃▇▇▁▁
FastingBS 0 1 0.23 0.42 0.0 0.00 0.0 0.0 1.0 ▇▁▁▁▂
MaxHR 0 1 136.81 25.46 60.0 120.00 138.0 156.0 202.0 ▁▃▇▆▂
HeartPeakReading 0 1 0.89 1.07 -2.6 0.00 0.6 1.5 6.2 ▁▇▆▁▁
HeartDisease 0 1 0.55 0.50 0.0 0.00 1.0 1.0 1.0 ▆▁▁▁▇

Dataset function

heart_dataset <- dataset(
  initialize = function(df) {
    # Pre-process and store as tensors
    self$x_num <- df %>%
      select(Age, RestingBP, Cholesterol, FastingBS, MaxHR, HeartPeakReading) %>%
      mutate(across(everything(), scale)) %>%
      as.matrix() %>%
      torch_tensor(dtype = torch_float())

    self$x_cat <- model.matrix(~ Sex + RestingECG + Angina, data = df)[, -1] %>%
      as.matrix() %>%
      torch_tensor(dtype = torch_float())

    self$y <- torch_tensor(as.matrix(df$HeartDisease), dtype = torch_float())
  },
  .getitem = function(i) {
    list(x = list(self$x_num[i, ], self$x_cat[i, ]), y = self$y[i])
  },
  .length = function() {
    self$y$size(1)
  }
)

# Convert to torch dataset
ds_tensor <- heart_dataset(heart_df)
ds_tensor[1]
$x
$x[[1]]
torch_tensor
-1.4324
 0.4107
 0.8246
-0.5510
 1.3822
-0.8320
[ CPUFloatType{6} ]

$x[[2]]
torch_tensor
 1
 1
 0
 0
[ CPUFloatType{4} ]


$y
torch_tensor
 0
[ CPUFloatType{1} ]

Split data with dataset subsets

set.seed(123)
n <- nrow(heart_df)
train_size <- floor(0.6 * n)
valid_size <- floor(0.2 * n)

# Create indices
all_indices <- 1:n
train_indices <- sample(all_indices, size = train_size)

remaining_indices <- setdiff(all_indices, train_indices)
valid_indices <- sample(remaining_indices, size = valid_size)

test_indices <- setdiff(remaining_indices, valid_indices)

# Create Subsets
train_ds <- dataset_subset(ds_tensor, train_indices)
valid_ds <- dataset_subset(ds_tensor, valid_indices)
test_ds  <- dataset_subset(ds_tensor, test_indices)

Convert to dataloader

train_dl <- train_ds %>%
  dataloader(batch_size = 10, shuffle = TRUE)

valid_dl <- valid_ds %>%
  dataloader(batch_size = 10, shuffle = FALSE)

test_dl <- test_ds %>%
  dataloader(batch_size = 10, shuffle = FALSE)

Specify the model

net <-
  nn_module(
    initialize = function(d_in){
      self$net <- nn_sequential(
        nn_linear(d_in, 32),
        nn_relu(),
        nn_dropout(0.5),
        nn_linear(32, 64),
        nn_relu(),
        nn_dropout(0.5),
        nn_linear(64, 1),
        nn_sigmoid()
      )
    },
    forward = function(x){
      # x is currently a list of two tensors (numeric and categorical)
      # Concatenate them along the feature dimension (dim=2)
      input <- torch_cat(x, dim = 2)
      self$net(input)
    }
  )

Fit the model

Set parameters

d_in <- length(ds_tensor[1]$x[[1]]) + length(ds_tensor[1]$x[[2]]) # total number of features

Fit with callbacks

fitted <-
  net %>%
  setup(
    loss = nn_bce_loss(),
    optimizer = optim_adam,
    metrics = list(
      luz_metric_binary_accuracy(),
      luz_metric_binary_auroc()
    )
  ) %>%
  set_hparams(d_in = d_in) %>%
  fit(
    train_dl,
    epoch = 50,
    valid_data = valid_dl,
    callbacks = list(
      luz_callback_early_stopping(patience = 10),
      luz_callback_keep_best_model()
    )
  )

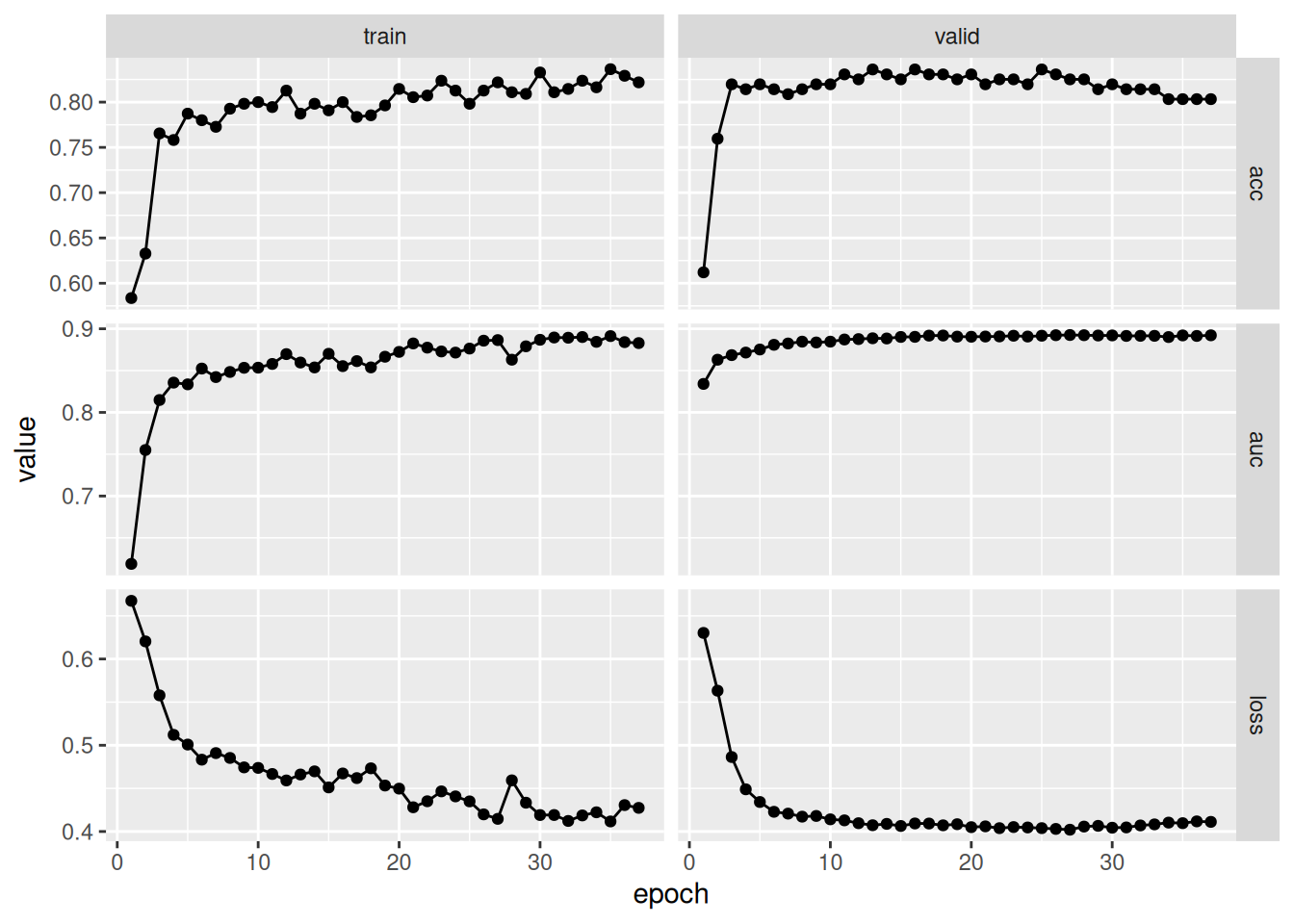

Training plot

fitted %>% plot()

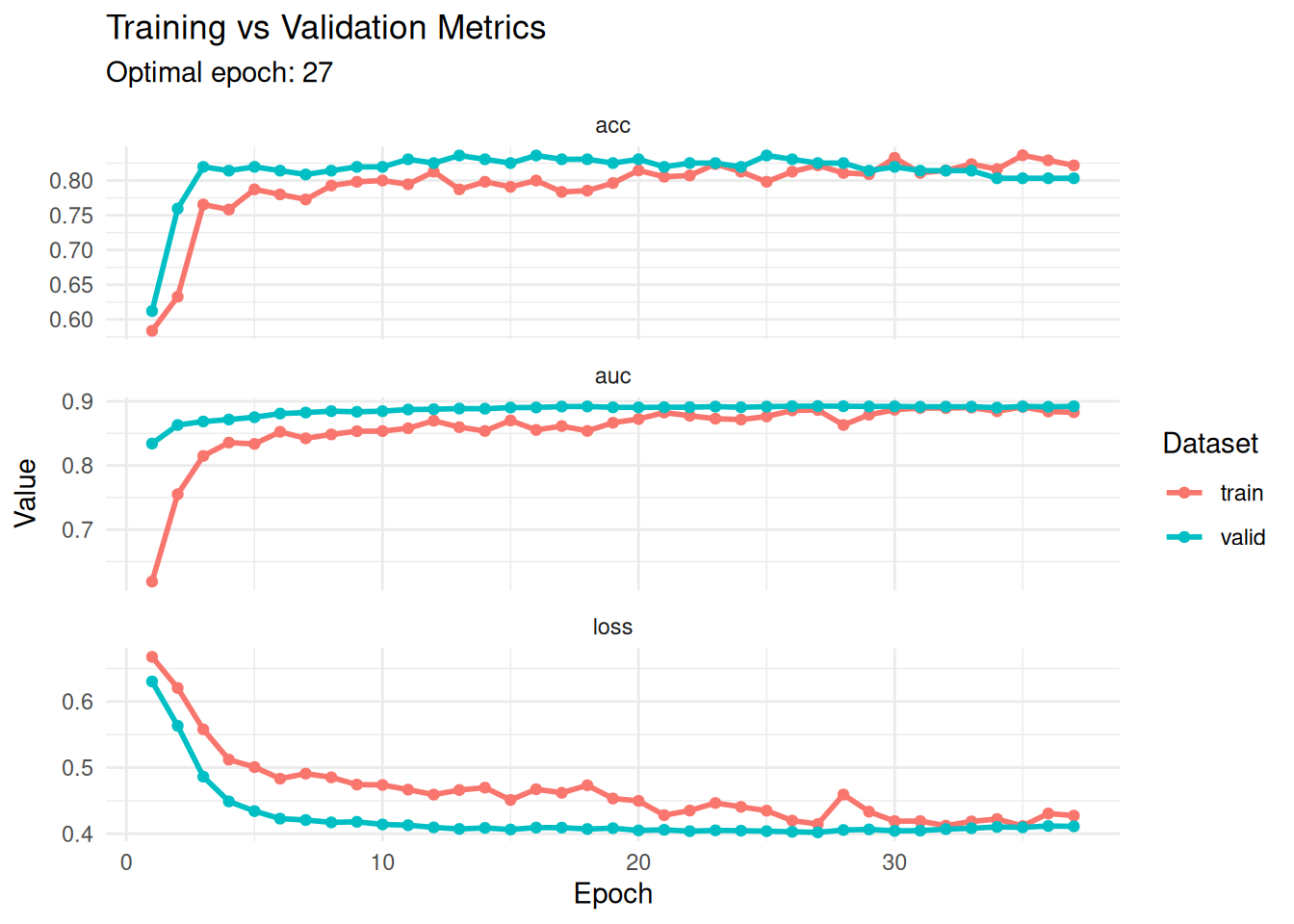

Better plot

hist <- get_metrics(fitted)

optimal_epoch <- hist %>%
  filter(metric == "loss", set == "valid") %>%
  slice_min(value, n = 1) %>%
  pull(epoch)

hist %>%
  ggplot(aes(x = epoch, y = value, color = set)) +
  geom_line(linewidth = 1) +
  geom_point(size = 1.5) +
  facet_wrap(~ metric, scales = "free_y", ncol = 1) +
  theme_minimal() +
  labs(
    title = "Training vs Validation Metrics",
    subtitle = paste("Optimal epoch:", optimal_epoch),
    y = "Value",
    x = "Epoch",
    color = "Dataset"
  )

Re-fit the model

Note: No need to refit manually since we use luz_callback_keep_best_model() to automatically save the best model based on validation loss.

Predict testing set

y_pred <- fitted %>% predict(test_dl)
y_true <- ds_tensor$y[test_ds$indices] %>% as_array()

dat_pred <-
  y_pred %>%
  as_array() %>%
  as_data_frame() %>%
  rename(prob = V1) %>%
  mutate(
    pred = factor(ifelse(prob > 0.5, 1, 0)),
    true = factor(y_true)
  )
Warning: `as_data_frame()` was deprecated in tibble 2.0.0.
ℹ Please use `as_tibble()` (with slightly different semantics) to convert to a
  tibble, or `as.data.frame()` to convert to a data frame.
Warning: The `x` argument of `as_tibble.matrix()` must have unique column names if
`.name_repair` is omitted as of tibble 2.0.0.
ℹ Using compatibility `.name_repair`.
ℹ The deprecated feature was likely used in the tibble package.
  Please report the issue at <https://github.com/tidyverse/tibble/issues>.
dat_pred
# A tibble: 185 × 3
     prob pred  true
    <dbl> <fct> <fct>
 1 0.101  0     0
 2 0.238  0     0
 3 0.0764 0     0
 4 0.968  1     1
 5 0.0822 0     0
 6 0.172  0     0
 7 0.288  0     0
 8 0.323  0     0
 9 0.846  1     0
10 0.128  0     1
# ℹ 175 more rows

Evaluate

fitted %>% evaluate(test_dl)
A `luz_module_evaluation`
── Results ─────────────────────────────────────────────────────────────────────
loss: 0.4093
acc: 0.8378
auc: 0.8844

Confusion matrix

dat_pred %>%
  conf_mat(true, pred) %>%
  autoplot("heatmap")

Accuracy

dat_pred %>%
  accuracy(truth = true, estimate = pred)
# A tibble: 1 × 3
  .metric  .estimator .estimate
  <chr>    <chr>          <dbl>
1 accuracy binary         0.838

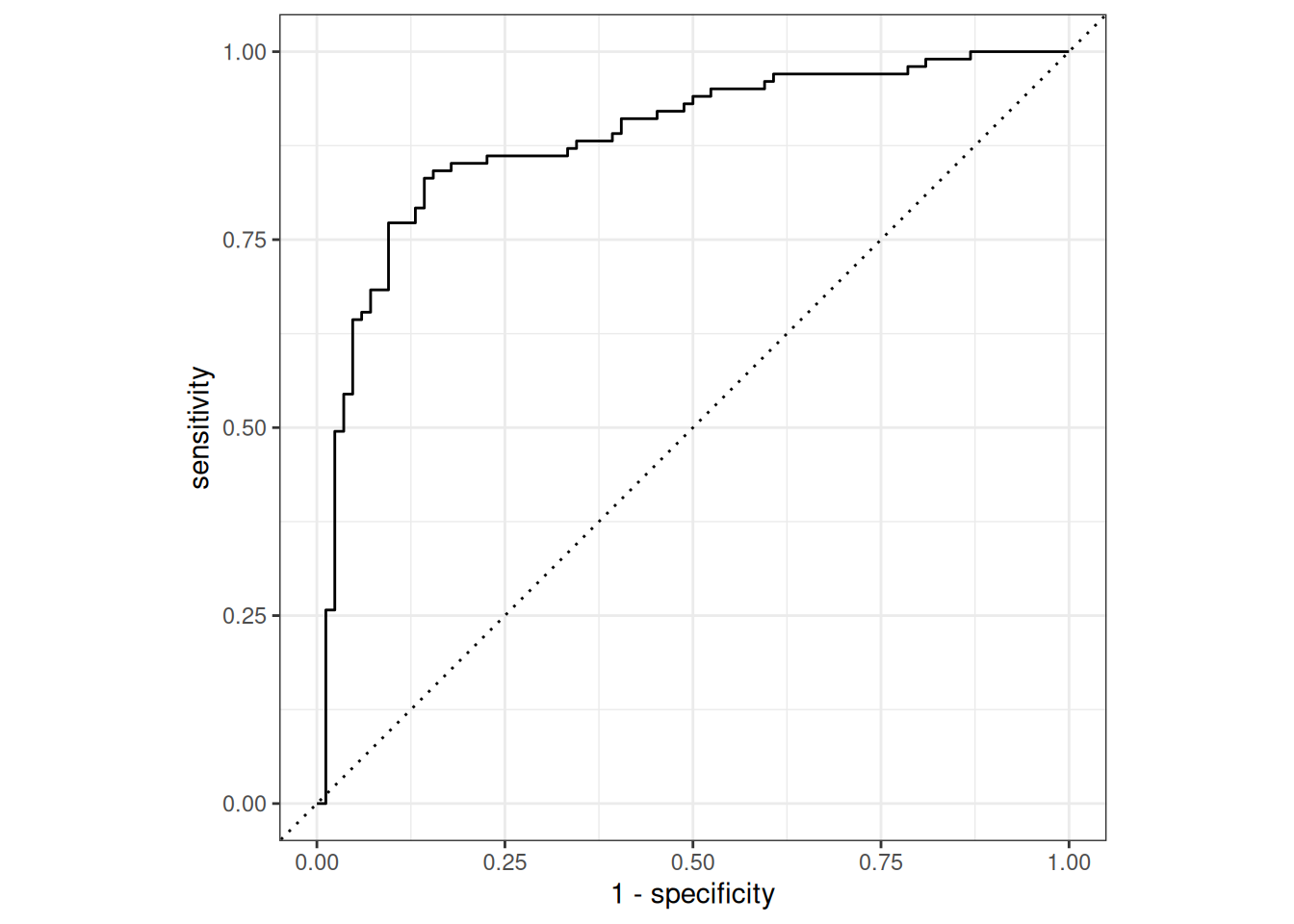

Plot ROC

dat_pred %>%
  roc_curve(true, prob, event_level = "second") %>%
  autoplot()

# ROC-AUC
dat_pred %>%
  roc_auc(true, prob, event_level = "second")
# A tibble: 1 × 3
  .metric .estimator .estimate
  <chr>   <chr>          <dbl>
1 roc_auc binary         0.885
